دوربین مداربسته HD (دام HDC-DL5212-F )

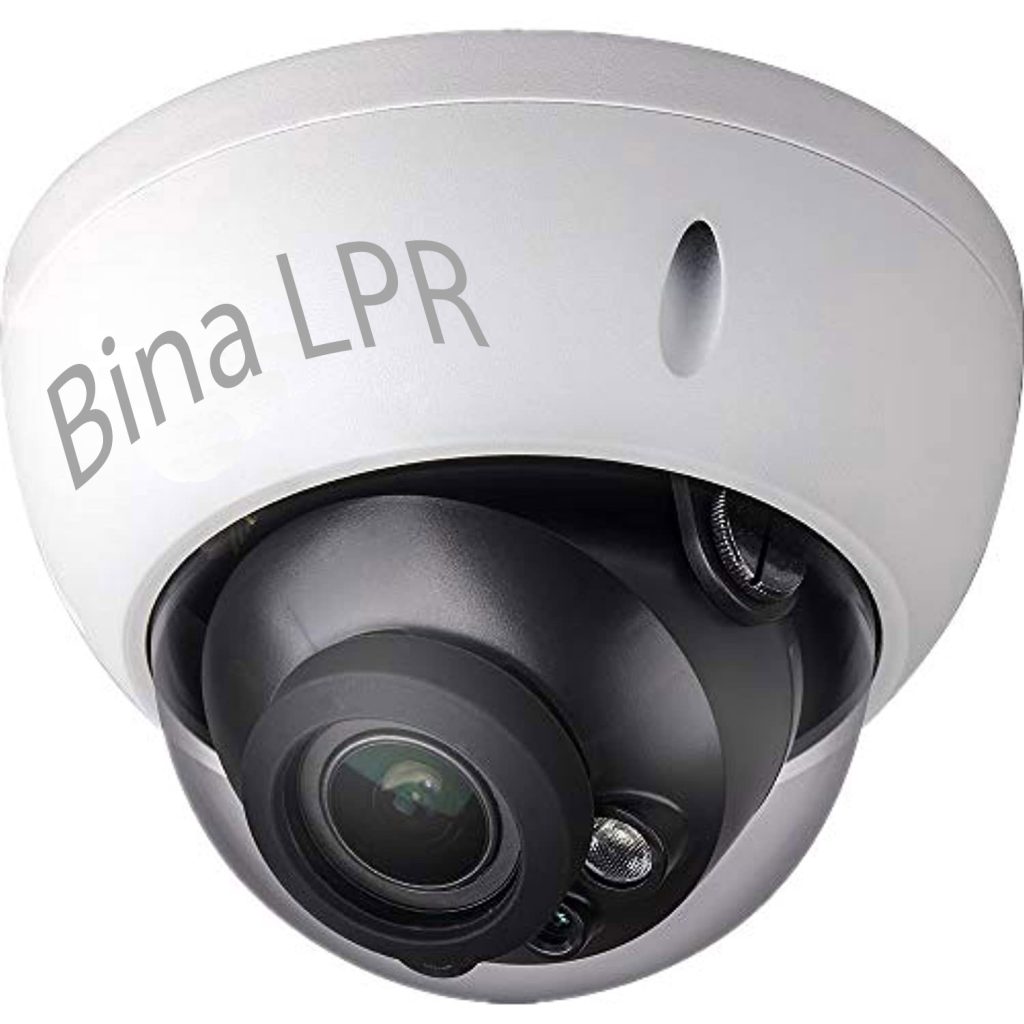

Bina LPR CAMERA HDC-DL5212-F
5.0MP Fix lens
Details
- Camera Type 5 Megapixels LPR HD Camera
- System Embedded RTOS design
- Video Effective Pixels 5 Mega Pixels
- Main stream: 2592*1944
- Sub stream: 2592*1944
- Frames Rates 25fps(2592*1944)
- NTSC: 30fps(2592*1944)
- Image Sensor 1/2.8” 5MP Ultral-Low-illumination Progressive Scan CMOS Sensor
- DSP Hisilicon 3516
- Illumination Color 0.03Lux@F1.2
- B/W 001 Lux@F1.2
- Shutter Speed 1/2 – 1/20,000s
- Exposure Mode Auto/Manual/shutter mode（shutter range variable）
- Adjust Parameters WDR,HLC,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
- Video Compression 264 / H.265 Main profile
- Bit Rate support 0.1M ~8Mpbs bit rate adjustable
- Network 1* RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
- ONVIF Support (ONVIF 2.0)
- POE Support(optional)
- IR Cut Filter Set of double light switch IR-CUT filter
- Lens Fixed
- 4 pcs High Power White light LED
- Illuminate Distance More than 30 M
- Waterproof Criterion IP 66
- I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
- Supplied Voltage DC12V/Optional PoE(802.3af/820.3at)
- Power Consumption Led On: 600mA max
- Working Enviroment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
