دوربین دام IPC-DL5212-F

دوربین دام IPC-DL5212-F

دوربین پردازش چهره (دام IPC-DL5212-F )

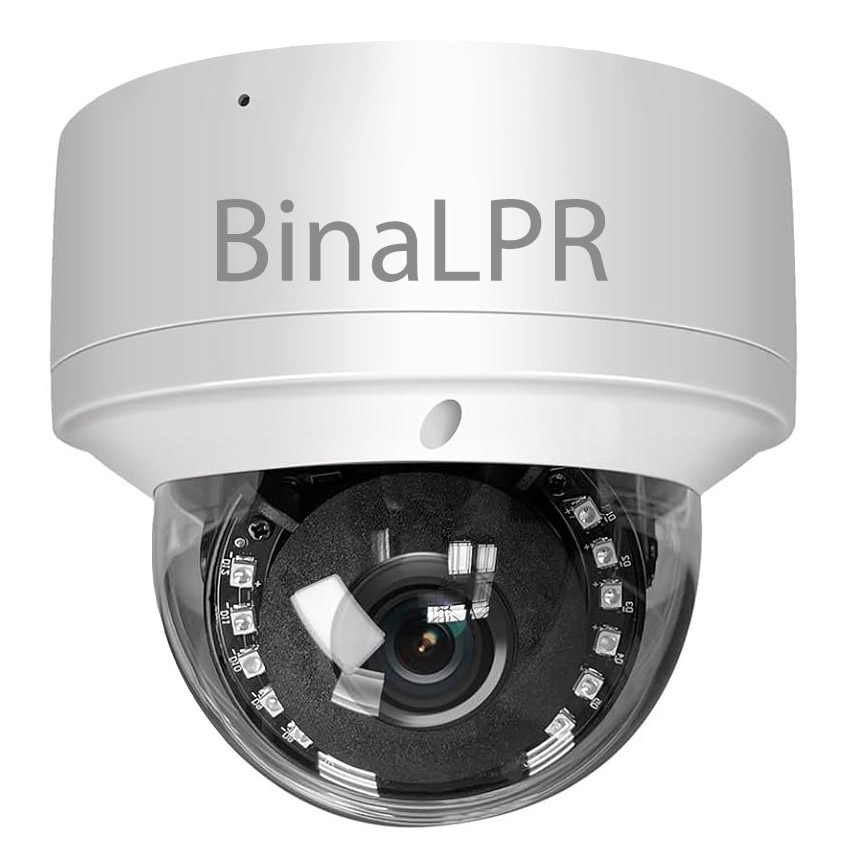

Bina LPR CAMERA IPC-DL5212-F

5.0MP License Plate Recognition Fix lens

پردازش چهره (فضای داخلی)

Details

Camera Type 0 Megapixels LPR IP Camera
System Embedded RTOS design
Video Effective Pixels 0 Mega Pixels
Main stream: 2592*1944
Sub stream: 2592*1944
Frames Rates 25fps(2592*1944)
NTSC: 30fps(2592*1944)
Image Sensor 1/2.8” 5MP Ultral-Low-illumination Progressive Scan CMOS Sensor
DSP Hisilicon 3516
Illumination Color 0.03Lux@F1.2
B/W 001 Lux@F1.2
Shutter Speed 1/2 – 1/20,000s
Exposure Mode Auto/Manual/shutter mode（shutter range variable）
Adjust Parameters WDR,HLC,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video Compression 264 / H.265 Main profile
Bit Rate support 0.1M ~8Mpbs bit rate adjustable
Network 1* RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
IR Cut Filter Set of double light switch IR-CUT filter
Lens Fixed
4 pcs High Power White light LED
Illuminate Distance More than 30 M
Waterproof Criterion IP 66
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/Optional PoE(802.3af/820.3at)
Power Consumption Led On: 600mA max
Working Enviroment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
